Silk Screen Print
To silk screen print, it’s an important process base on cover glass lens manufacturing, which offer a wide range of design capabilities. After pure black or white along the perimeters, complex multi layers print requires excellent precision and premium quality control. Since a leading OEM of silk screen print cover glass, we focus on delivering flawless results for every challenging designs.
Our Silkscreen Printing Capacities
We focus on silk screen printing enhancement for cover lens, catering to display panels, touch screens, industrial equipment, medical instruments and other applications. Equipped with a full-auto five-station silk screen printing production line as well as semi-automatic machines, we deliver high-precision and long-lasting printing finishes tailored to your project requirements.

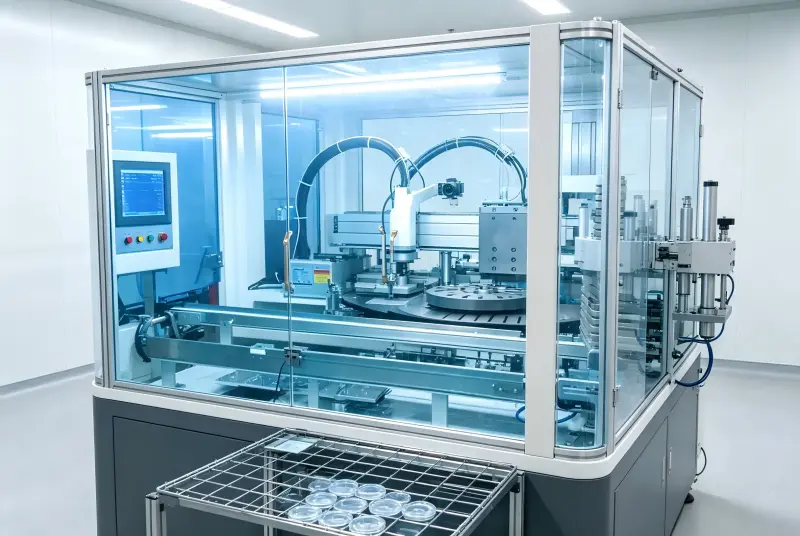

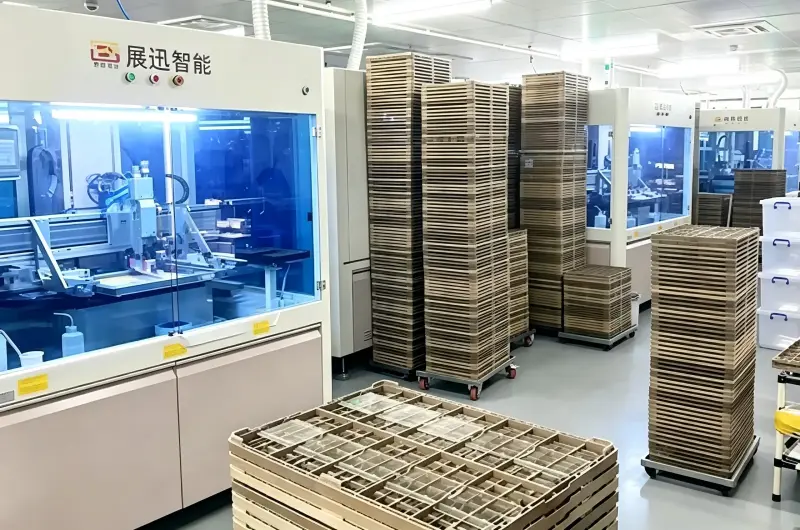

Fully Automatic 5-Color Silk Screen Printing Line
- Mass production ready, processing glass panels at high speed with short lead times
- Stable automated control delivers consistent ink lay down, color matching and print registration
- Precision alignment system ensures multi-layer graphics with tight tolerance
- Automated operation reduces manpower requirements and production costs
- Auto material handling mitigates risks of glass breakage and contamination

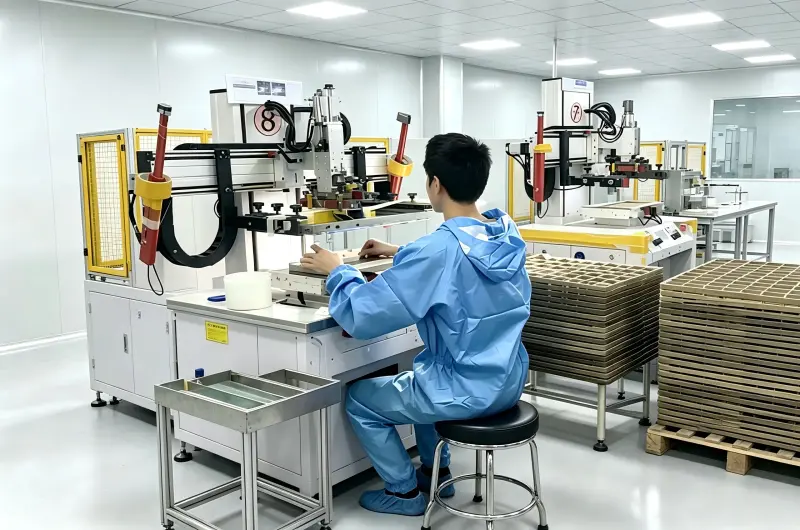

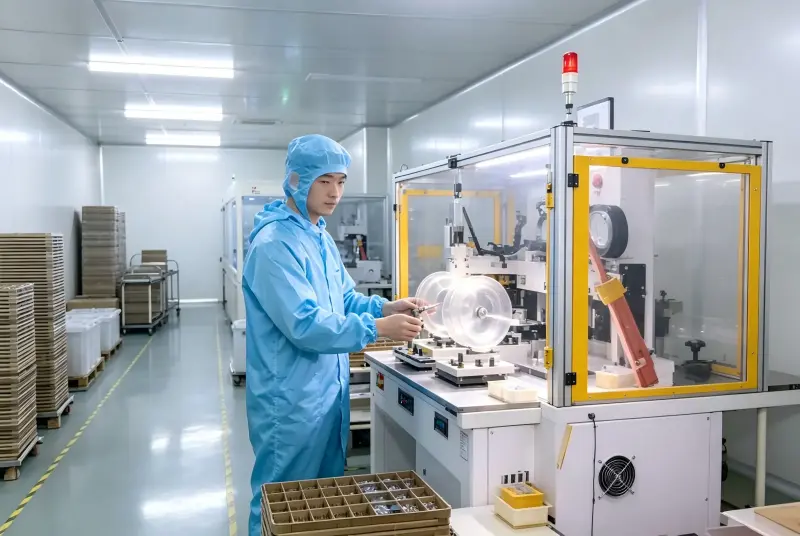

Semi-Automatic Printing Machines
- Flexible custom solution, well-suited for small-to-medium orders with varied designs and specs
- Supports manual fine adjustments to accommodate complex colors, unique shapes and special substrates
- Cost efficiency option for low-volume orders without the high capacity of full-auto lines
- Great print quality with skilled operators delivering precise ink lay down and sharp graphics
- Fast & simple changeover between different artwork and color sets.

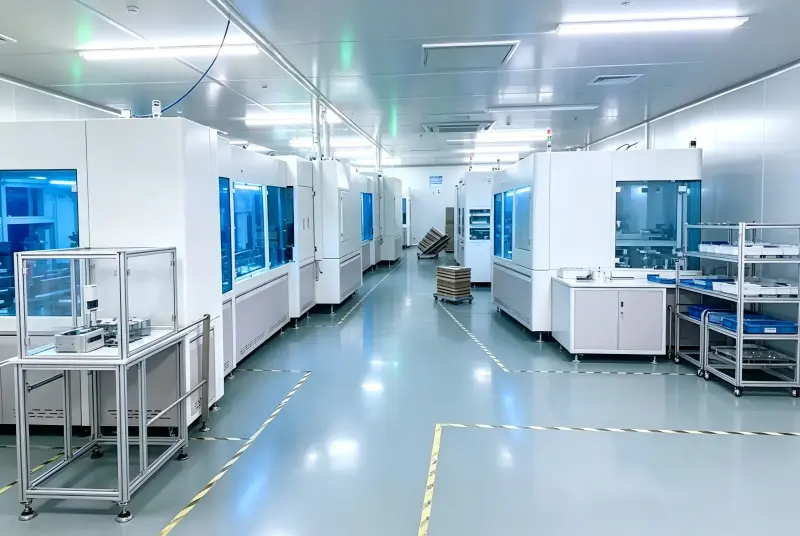

Look Into Our Silk Screen Printing Department
Our screen printing workshop is equipped with a Class 1500 cleanroom. This control environment guarantees contamination-free processing and high-precision printing results for all cover glass panels.
Silk Screen Print Regular Specifications
| Printing Equipment | We adopt professional printing equipment including fully automatic 5-color silkscreen printing machines and semi-automatic screen printing units, covering both high-volume mass production and customized small-batch processing demands. | Printing Inks | A full range of high-performance printing inks is applied to meet diverse functional and aesthetic requirements, including epoxy ink, metallic ink, infrared (IR) ink and high-temperature resistant ceramic ink. |
|---|---|---|---|
| Core Technical Specifications | Minimum Printing Precision: 0.15mm, applicable for fine lines, circular patterns and various intricate graphic designs Printable Layers: Support multi-layer overprinting, with a maximum of 10 printing layers | Printing Color Options | Custom multi-color printing is available, covering classic tones such as black, white, red, green, orange, grey, and other customized color shades per client requirements. |
| Applicable Substrate Materials | Our printing process is compatible with multiple premium glass substrates, including soda-lime glass, aluminosilicate glass, Corning Gorilla Glass, AGC Dragontrail Glass, Panda Glass and IK impact-resistant glass. | Customizable Printing Effects | We can deliver diverse sophisticated printing effects, including dead front printing (full black or full white background), gradient color printing, and segmented multi-color printing. |
| Product Durability Performance | All printed patterns feature excellent comprehensive durability with outstanding scratch resistance, UV aging resistance and high heat resistance for long-term stable application. | ||
| Remarks | All silkscreen printing services are strictly customized according to client-provided technical drawings, confirmed samples or physical reference products. Feel free to contact our professional team for any technical inquiries and customized solution consultation regarding cover glass printing. | ||
Take Action In Our Glass Printing Expertise
With years of industry expertise, we have successfully tackled a variety of complex technical challenges in glass screen printing for versatile application scenarios. We continuously turn technical difficulties into core service strengths, delivering stable, high-quality printing solutions and satisfactory outcomes for global customers.
1. Prevention & Solution of Ink Flaking and Peeling
To effectively avoid ink peeling and delaminating on glass surfaces, we adopt strict and customized adhesion inspection procedures, with optimized cross-hatch testing standards adapted to different printing processes and ink types. Our standardized testing specifications are classified as follows:
General Inks for Logos, Texts & Large-area Printing
We conduct independent cross-hatch adhesion tests on fine graphic elements such as brand logos and text, as well as large-area printed sections. All finished products must reach a 4B adhesion grade or above to pass quality inspection, ensuring firm ink bonding and long-term service stability.
Special Functional Inks (Such as Mirror Silver Metallic Ink)
Special metallic inks feature unique material characteristics that differ from conventional printing inks. For high end finishes like mirror silver printing, a 3B adhesion rating is recognized as a qualified industry standard. This compliant benchmark is fully incorporated into our internal quality control system to balance aesthetic effects and practical durability.
These stringent anti-peeling quality standards are widely applicable to cover glass used in industrial equipment, medical devices, and outdoor exposure scenarios.
With accumulated years of professional manufacturing experience, we have resolved numerous technical bottlenecks in diversified glass screen printing projects. We transform common industry technical pain points into our core competitive advantages, providing global clients with reliable, high-precision and high-durability printing solutions.
2. Restricted Ink Selection for Physically Tempered Glass Printing
The extreme thermal conditions during physical tempering impose strict limitations on usable inks, which may compromise design flexibility and finished durability. Most printing inks cannot withstand such high-temperature treatment. We provide tailored printing solutions for physically tempered cover glass as below:
- Ceramic Inks paired with Physical Tempering: Delivers top-tier durability and superior scratch resistance. Color options are limited to solid black and solid white.
- UV-Stable Inks paired with Physical Tempering: Designed for outdoor deployment. These formulations maintain UV stability and survive the tempering cycle.
- General Inks paired with Physical Tempering: Suitable for indoor environments and delivers standard durability performance.
Typical application scenarios include appliance control panels, as well as both indoor and outdoor products.
3. Elimination of Halo Phenomenon for Backlit Glass Panels
Traditional single-layer white printing on backlit glass often produces an obvious halo glow around icon edges under LED backlighting. This common defect leads to blurred display outlines and poor visual presentation, greatly affecting product aesthetics and user experience. To tackle this industry issue, we have developed a customized composite process combining multi-layer screen printing and precision laser etching, delivering ultra-clear, high-precision backlit visual effects.
Our optimized technical workflow effectively eliminates edge halo and light leakage:
- Conduct three-round full-panel white ink printing to ensure uniform and solid base color coverage
- Apply a professional gray base coating to balance light transmittance and suppress light diffusion
- Adopt precision laser etching to trim icon edges for sharp and neat outlines
- Overlay translucent ink printing on the rear side to further refine light transmission uniformity
This advanced anti-halo printing solution is widely applied to smart home devices, household appliance control panels, and human-machine interface (HMI) glass panels.
4. Precise White Color Calibration for Glass Printing
Natural glass substrates carry inherent green undertones, which easily tint printed white ink with a bluish hue and fail to present pure and authentic white effects. In addition, white color covers a wide range of tones including cool white, warm white, and apple white, requiring highly customized color matching instead of unified single-tone printing. We adopt targeted technical measures to achieve accurate white color reproduction:
- Adopt Ultra-Clear Glass Substrates: Ultra-clear glass eliminates the native green tint of ordinary glass, laying a foundation for pure white printing presentation.
- Customized Ink Proportioning: We independently deploy dedicated ink formulas to accurately restore various customized white tones per client requirements.
- Professional Technical Operation: Our skilled and experienced technicians handle complex white color calibration to overcome traditional printing color deviation problems.
- Strict Pre-production Verification: Pre-sample printing and repeated color inspection are conducted to guarantee consistent and accurate white color performance in mass production.
This high-precision white color printing solution is widely used in home appliance panels, consumer electronic equipment, and medical device cover glass.
Core Advantages: With years of in-depth experience in cover glass screen printing, we effectively resolve various industry pain points ranging from ink peeling, tempering process limitations, backlit halo defects to color deviation issues. We convert technical challenges into reliable service capabilities, delivering high-precision, high-durability and high-aesthetic printing solutions for global customers.
5. Seamless Dead Front Printing Implementation
A perfect dead front all-black visual effect demands rigorous color tuning and precise light transmission management. Inconsistent ink formulations or poorly controlled transmittance will lead to obvious visual imperfections. We deliver premium, defect-free dead-front printing via the following technical controls:
- Precision Ink Color Matching: Tune semi-transparent black ink to perfectly align with the color of surrounding bezels.
- Adjustable Light Transmittance: Transmittance range from 1% to 50%; typical working specs at 15%±5% or 20%±5%.
- Multiple Process Options: We pick the best-suited solution according to panel dimensions: Screen printing for small panels (<30×30mm), electroplating for tiny sizes (<7 inches), grey substrate glass for medium panels (<32 inches), and adhesive film for any dimension.
- Typical application fields: smart home products, wearables, automotive displays and medical devices.
Core Advantages With years of in-depth experience in cover glass screen printing, we effectively resolve various industry pain points ranging from ink peeling, tempering process limitations, backlit halo defects, color deviation and dead-front visual inconsistency. We convert technical challenges into reliable service capabilities, delivering high-precision, high-durability and high-aesthetic printing solutions for global customers.
6. High-Precision Multi-Layer & Multi-Color Printing Technology
Printing processes involving six or more ink layers and multi-color combinations pose rigorous technical challenges, including precise layer registration, unified color rendition, stable positioning accuracy, and long-term ink durability. Complex overlay printing is prone to misalignment, color inconsistency, and poor environmental resistance. We adopt standardized high-precision manufacturing systems to solve these technical pain points:
- Ultra-Precision Layer Registration: Advanced positioning systems ensure accurate overlay of multiple printing layers, effectively avoiding offset and blurry patterns.
- Strict Batch Color Consistency Control: Standardized ink deployment and color calibration procedures maintain identical color performance across different batches and production cycles.
- High-Tolerance Printing Process: Optimized production workflows achieve ultra-tight dimensional tolerances, greatly improving finished product yield and qualification rate.
- Highly Durable Ink Formulations: All applied inks pass professional reliability tests, featuring strong substrate adhesion, outstanding weather resistance and UV aging resistance for long-term service.
This sophisticated multi-layer and multi-color printing solution serves consumer electronics, industrial and medical equipment, smart home systems, and new energy industry devices.

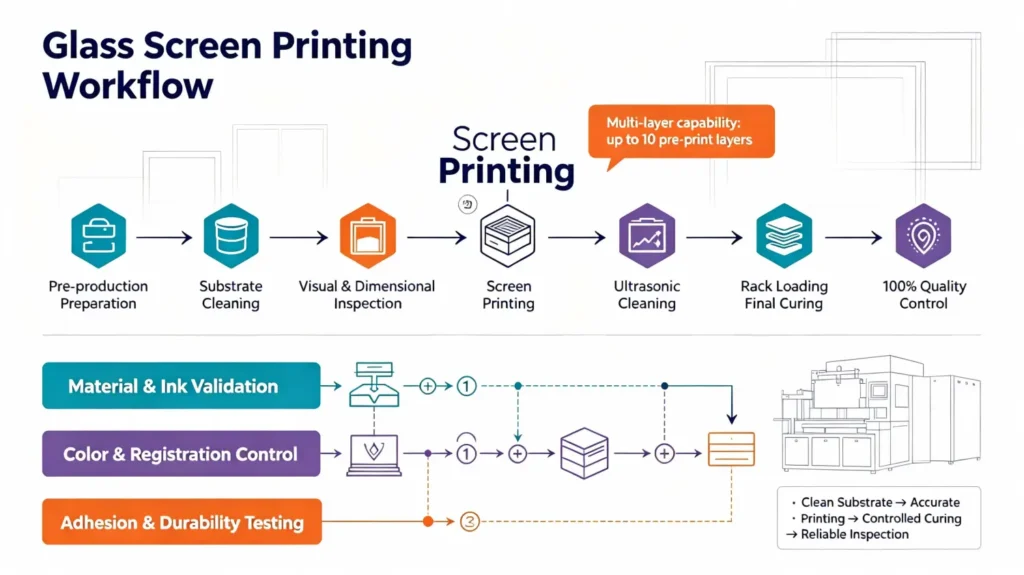

The Silk Screen Print Process

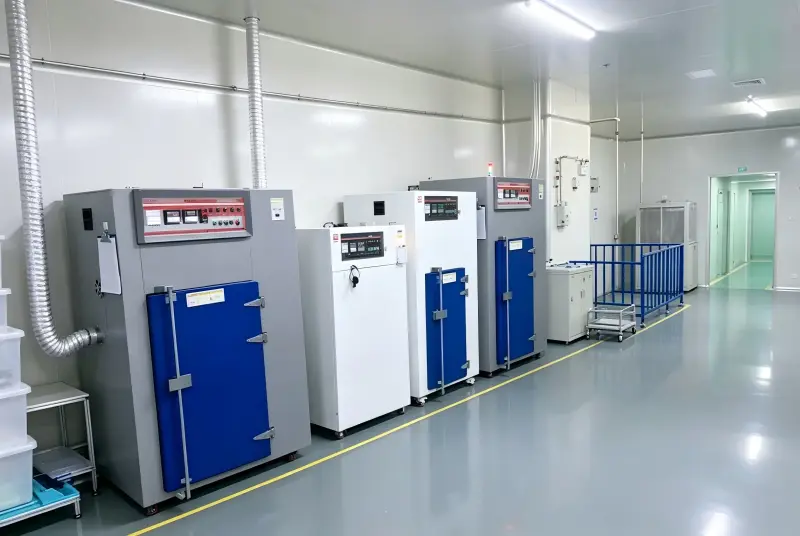

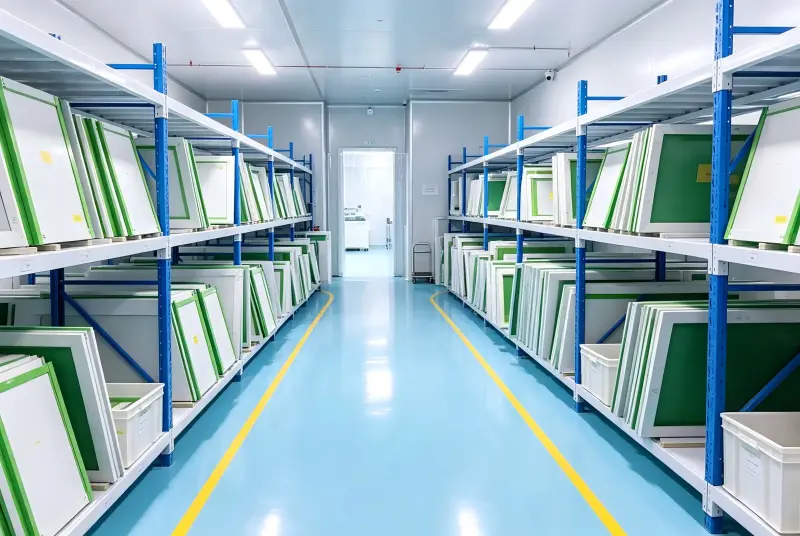

Screen & Ink Preparation-Printing-Baking/Tempering-QC
The Technology For Silk Screen Print
Screen printing is a highly efficient, popular process for manufacturing cover glass. Its flexible application capability and superior print durability make it ideal to fulfill demanding aesthetic and functional specs of cover glass across many sectors.
Working Principle of Screen Printing

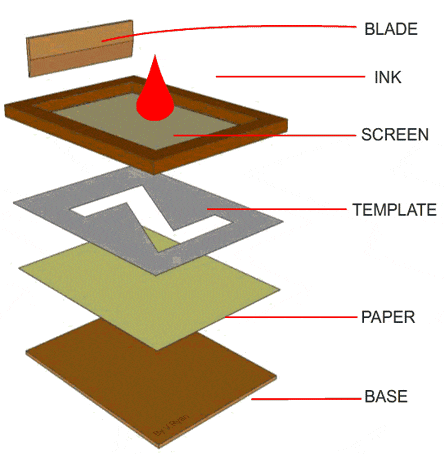

Screen printing is a stencil printing technique that transfers ink onto substrates through mesh screens. Key elements:
- Squeegee for spreading ink over the screen
- Squeegee pressure pushes ink through mesh onto the substrate
- Mesh screen carrying the artwork pattern
- Stencil mask blocking unwanted ink transfer areas
The screen is mounted above the stencil, with the substrate beneath it. When the squeegee moves ink across the mesh, the design gets printed onto the glass. This method delivers robust, fully customizable prints for cover glass panels.
Core Benefits of Silk Screen Printing for Cover Glass
Superior Durability and Ink Adhesion
We adopt industry-specific functional inks formulated for stable bonding on smooth glass substrates. By applying matched baking or UV curing processes according to different ink properties including ceramic, organic and UV-curable formulas, the printed layers achieve exceptional abrasion resistance, chemical stability and environmental aging resistance. This ensures long-term structural integrity and consistent appearance for end products.
Full Compatibility with Touch Sensor Systems
Our standard screen printing inks are non-conductive when applied to non-touch surfaces or inactive display zones. They will not interfere with the induction accuracy and sensitivity of underlying capacitive touch sensors, fully preserving the original touch functionality and user experience of smart display panels.
High Cost Efficiency for Mass Manufacturing
After one-time screen stencil fabrication and parameter calibration, the screen printing workflow features fast cycle speed and stable repeatability. Compared with vacuum coating, laser etching and other patterning techniques, it provides more economical pricing for medium-to-large batch production while maintaining uniform quality across bulk orders.
Superior Opacity and Light-Shielding Performance
The screen printing process allows controllable, uniform ink layer deposition, which is critical for forming high-shading black mask (BM) layers. It effectively conceals internal circuits, frame structures and adhesive layers, eliminates edge light leakage, and significantly enhances display contrast and overall visual purity for backlit and front-display devices.
Reliable Pattern Precision and Edge Definition
The process delivers stable registration accuracy and sharp edge presentation for conventional cover glass printing requirements, including border frames, brand logos and functional icons. All printed patterns maintain precise positional alignment with glass edges and display areas, avoiding blurring, deviation or irregular edges.
Wide Versatility in Inks and Custom Colors
In addition to high-durability ceramic inks suitable for harsh environments, our screen printing system supports diverse organic and UV-curable ink materials. It enables customized Pantone color matching, multi-tone decorative printing, and functional pattern production for icons, text labels and personalized graphic elements, balancing durability and aesthetic diversity.
Why Choose Us for Custom Silkscreen Printed Cover Glass
professional technical capabilities
Our premium cover glass silkscreen printing services stand out through professional technical capabilities, precision manufacturing standards, and strict quality control systems. Equipped with advanced automated printing equipment and a team of seasoned technicians, we deliver stable, high-quality, and cost-effective glass printing solutions tailored to diverse industrial and commercial project demands.
Full-Process Strict Quality Control Mechanism

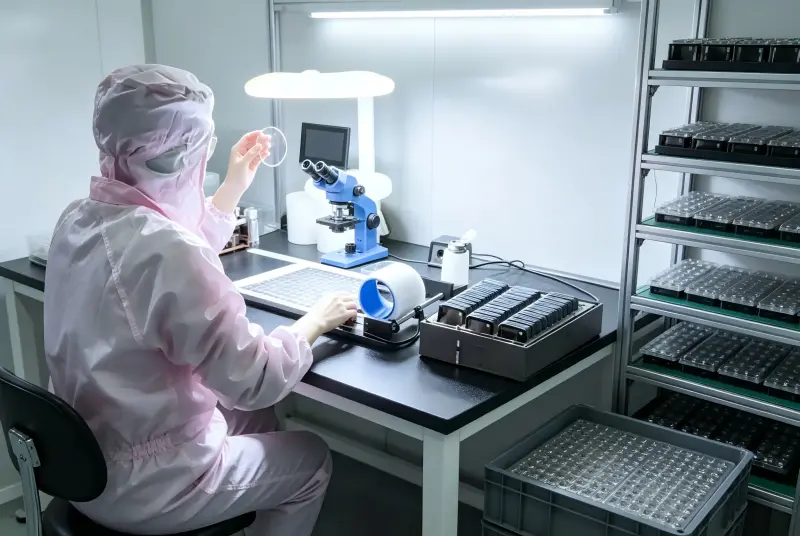

Quality assurance runs through the entire manufacturing process instead of relying solely on final finished product inspection. We have established complete quality checkpoints covering raw glass incoming inspection, in-process production monitoring and final outgoing quality control (OQC). Equipped with professional precision measuring instruments and high-definition visual inspection equipment, we strictly verify every production detail to ensure all finished products fully comply with customer customization specifications and internal high manufacturing standards.
Professional and Experienced Technical Team
Our technical team consists of senior engineers and skilled operators with years of specialized experience in cover glass screen printing. Proficient in complex multi-layer overprinting, special color calibration and difficult process optimization, our team can quickly adjust production parameters, solve various printing technical bottlenecks, and customize targeted processing schemes to accurately meet personalized and high-standard project requirements from global clients.
Independent In-House Reliability Testing Capacity
In addition to conventional appearance and dimensional inspection, we have built a complete internal reliability testing system. Professional tests including cross-hatch adhesion detection and simulated environmental aging experiments are conducted for batch samples. Through proactive pre-production and in-process performance verification, we fully validate the durability, stability and service life of printed products, providing reliable quality guarantees for end-use applications.
Dual Advanced Automatic & Semi-Automatic Printing Systems
We adopt a hybrid production model integrating fully automatic and semi-automatic screen printing equipment. High-speed automated production lines deliver stable, consistent output for large-batch orders, ensuring uniform product quality and efficient mass delivery. Meanwhile, flexible semi-automatic devices cater to intricate custom patterns, multi-specification products and small-to-medium batch orders. This dual-process configuration enables us to match the most suitable production solution for each project, achieving a perfect balance of high precision, superior quality and production efficiency.
Standardized Ink and Raw Material Management

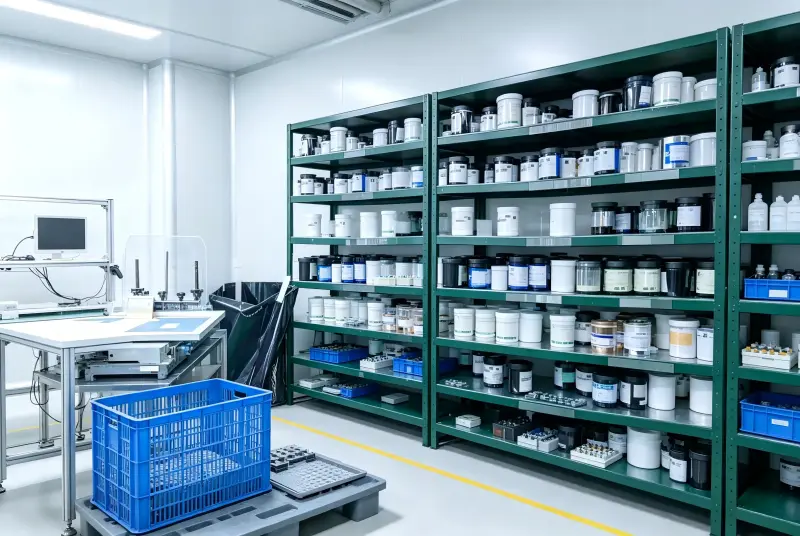

We implement refined and standardized management for all printing inks and auxiliary materials. Professional procedures including batch number recording, regular viscosity testing and strict material screening are adopted for ink inventory and screen stencil preparation. Scientific material management effectively stabilizes color matching accuracy across batches, strengthens ink-glass adhesion, and significantly improves the long-term weather resistance and structural durability of printed patterns, fully conforming to industry leading production norms.

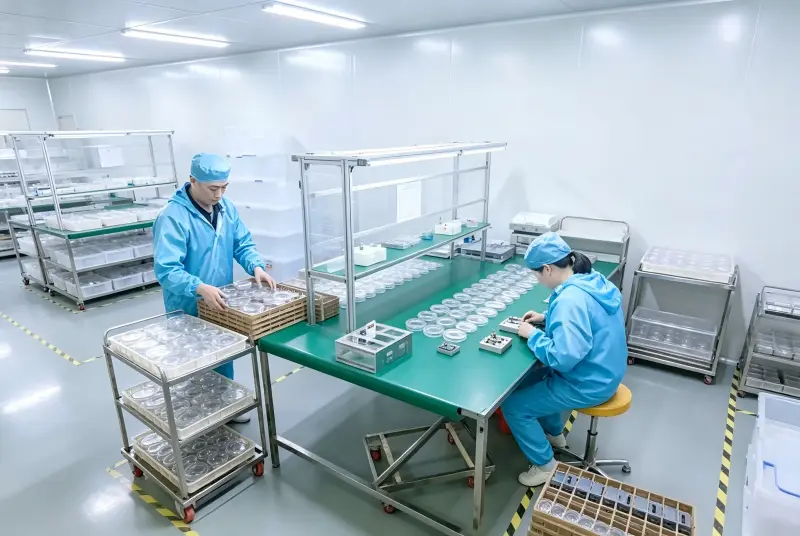

Class 1000 Cleanroom Production Environment
Key printing and glass handling procedures are completed in a standardized Class 1000 dust-free cleanroom. The strictly controlled indoor environment effectively isolates dust, particles and other pollutants, greatly reducing common printing defects such as pinholes and inclusions. The ultra-clean production conditions ensure ultra-flat and clean printed surfaces, which is particularly critical for high-precision display screens and touch interface cover glass products.
Customized High-Quality Glass Printing Solutions
Backed by advanced production equipment, standardized management systems and professional technical strength, we provide high-precision, high-durability and cost-effective custom silkscreen printing services for cover glass. We tailor professional printing solutions for diverse industrial, medical, smart home, automotive and consumer electronic projects, delivering stable and high-quality products for global customers.
FAQ
Q: How do you ensure the printed color remains consistent between approved samples and mass production runs?
A: Color consistency is secured by locked ink recipes, fixed printing and curing parameters, plus regular comparisons against your master sample with calibrated color measuring devices. We track ink batches, test ink viscosity, and conduct inline color sampling during mass production, minimizing shade drift and matching your approved sample reliably across all batches.
Q: For semi-transparent prints such as halftone or translucent regions, do you carry out 100% transmittance testing on every single component?
A: Yes. We adhere closely to your drawing specs and run 100% transmittance tests on all required halftone and translucent printed areas. Every panel gets verified to satisfy your key optical performance criteria.
Q: How do you guarantee a pure white print, avoiding the common greenish tint, to meet our precise color specifications?
A: Standard float glass causes the typical greenish tint on white prints. We use low iron ultra-clear glass to eliminate this substrate colour shift. It removes the base colour interference of glass so white ink shows its natural neutral tone, producing clean pure-white prints that fit your strict colour specs.
Q: What ink varieties are available for cover glass printing? How can I pick the right ink for my project?
A: We offer multiple custom inks for cover glass printing: ceramic, UV-curable, metallic, epoxy and IR-curable formulas. Ceramic ink offers exceptional durability after high-temperature baking and suits outdoor applications, with restrictions on available colors and glass sizes. UV ink supports vivid, diverse colors with fast UV curing and works reliably outdoors. Metallic ink creates gold or silver decorative effects, commonly used on touch glass and glass mouse pads. We select the optimal ink solution by evaluating your durability, aesthetic, functional and cost requirements.
Q: How durable are your screen-printed markings when facing abrasion, chemical contact and long-term outdoor aging?
A: Our screen-printed glass is constructed for high endurance. Ceramic ink bonds permanently to glass via high-temperature baking. Fully cured organic and UV inks also provide solid protection against scratches, common cleaners, UV rays and moisture. We carry out cross-cut adhesion and reliability tests to confirm long-term performance.
Q: What criteria do you follow for the cross-cut adhesion test of printed ink layers?
A: We use different acceptance rules for ink adhesion testing: Grade 4B for basic solid colors (black/white/grey): Minor edge flaking below 5% area is acceptable via cross-cut test. Grade 3B for multi-layer overprinting: Ink loss within 5%–15% of the test area is allowed. Specialty metallic, silver, translucent and IR inks use only tape adhesion test; no ink lifting is permitted.
Q: Why do we require a tangible physical master sample, even for relatively straightforward artwork?
A: Color reproduction on glass is technically tricky. Even simple borders can show visual differences caused by ink batches and process variables; red, green and white shades are especially hard to replicate consistently. Pantone values only act as a starting reference, as glass prints differ greatly from paper color swatches. Physical samples act as the definitive visual benchmark to guarantee the final printed result matches your requirements, particularly for multi-color and gradient designs.
