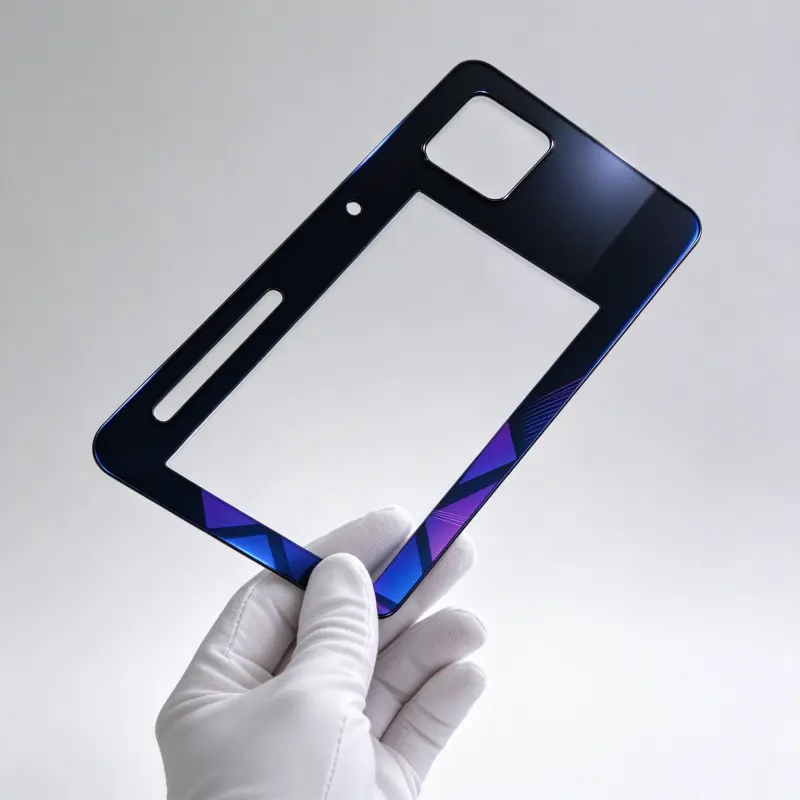

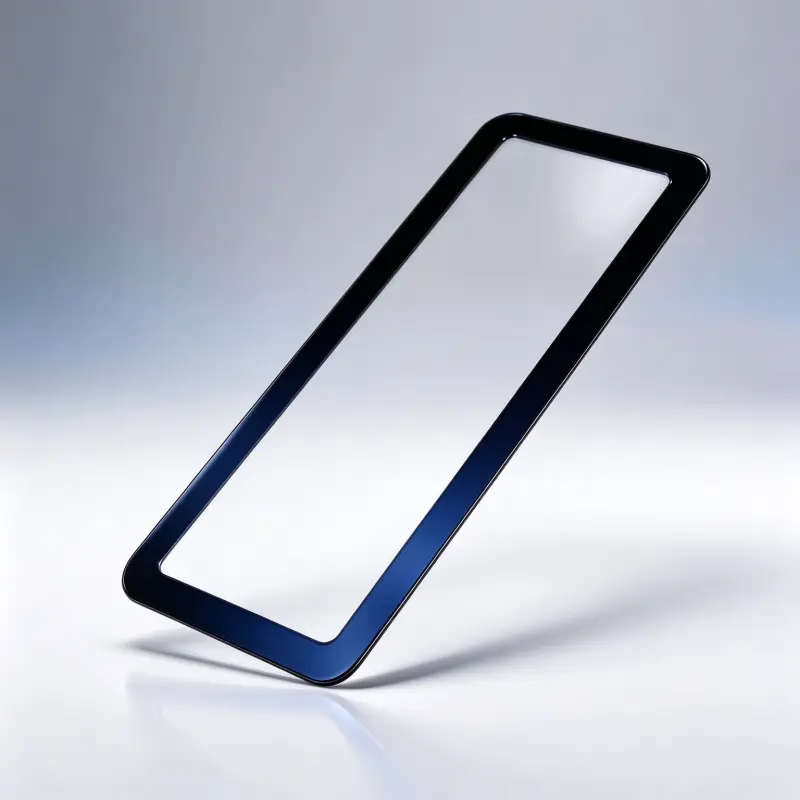

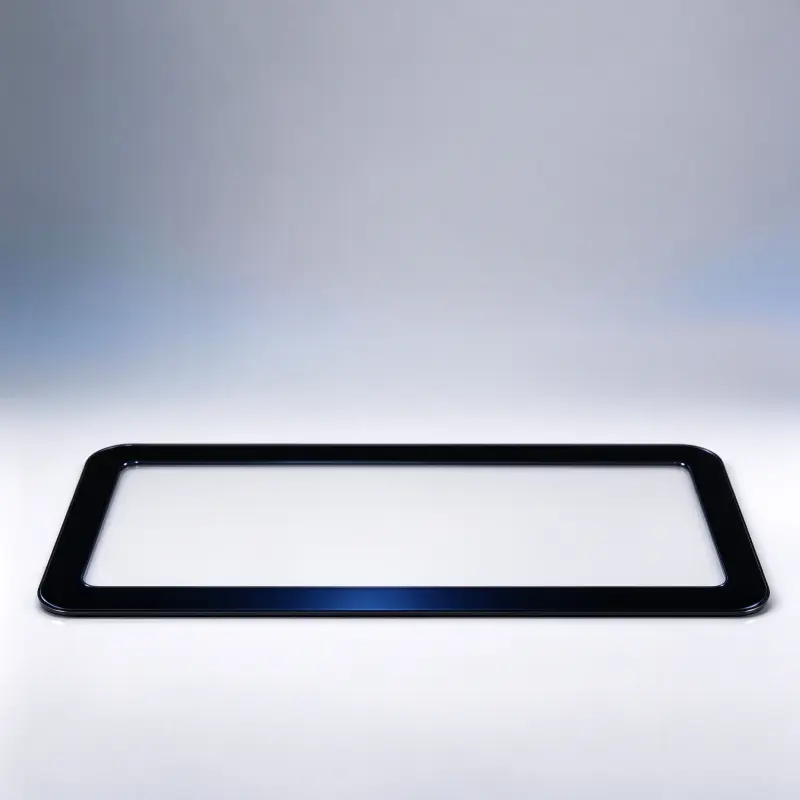

NIR Anti-Reflective Glass for Sensor Applications
Near-infrared optical systems may operate at wavelengths such as 850 nm or 940 nm, depending on the application. Other systems require a different wavelength or a broader spectral band. These values are examples of common design targets, not a guarantee that every coating supports them.
An NIR coating is designed around a particular spectral range. The finished performance also depends on the glass substrate, coating structure, angle of incidence and measurement method. For this reason, buyers should provide a wavelength specification instead of requesting infrared glass without further details.
Potential customization requirements include:
- Compatible optical glass substrate
- Single-sided or double-sided AR coating, subject to feasibility
- Defined wavelength band and reflectance target
- Custom thickness, length, width or diameter
- Circular, rectangular or drawing-defined shapes
- Edge grinding, chamfering or polishing where available
- Clear-aperture and surface-defect requirements
- Optical performance verification against agreed test conditions
The suitable substrate and coating process must be reviewed for each project. Glass transmission in the requested wavelength range should be verified before the design is finalized.
Where Near-Infrared AR Glass Is Used
Infrared Sensor Protection Windows
Sensors may require a transparent barrier between the sensing element and the external environment. A properly specified window can reduce unwanted surface reflection while providing a defined mechanical interface for the equipment housing.
Near-Infrared Machine Vision
Machine vision systems may use NIR illumination to inspect products, materials or surface features. The window should be evaluated at the actual illumination wavelength and camera response range. A visible-light transmission figure alone is not sufficient to confirm suitability.
Optical Inspection Equipment
Industrial inspection equipment can use NIR light to distinguish features that are difficult to identify under visible illumination. The optical window should be specified for the system’s spectral range, incidence angle and required clear aperture.
NIR Measurement and Monitoring Devices
Measurement devices may require repeatable optical transmission through a protective window. Buyers should define the optical path, installation angle and required transmission or reflection limits so the coating can be evaluated against the actual operating conditions.
How to Specify an NIR AR Glass Window
The most important step is to provide the optical requirements alongside the mechanical drawing.
Wavelength range: State the operating wavelength or band, such as 850 nm, 940 nm or a defined range around the intended operating point.
Reflectance and transmittance: Specify whether the requirement applies to each coated surface or the complete glass component. Include the measurement wavelength and incidence angle when known.
Substrate material: Identify the preferred glass type or ask for material options compatible with the target wavelength.
Dimensions and tolerances: Include thickness, overall dimensions, diameter, corner radius, edge finish and any mounting features.
Operating environment: State the temperature range, humidity exposure, cleaning method and whether the window is exposed to abrasion or chemicals.
Testing requirements: Identify any required spectral transmission curve, reflectance report, surface inspection criteria or environmental test.
A narrowband coating designed for one wavelength should not be assumed to perform equally well across a broad NIR band. If the sensor operates at several wavelengths, include all of them in the RFQ.
Custom NIR Windows for OEM Production
A successful NIR window must meet both optical and mechanical requirements. Even if the coating meets its spectral target, a window can still be unsuitable if its thickness, edge geometry or clear aperture does not fit the equipment.
For new projects, provide the drawing and optical specification together. For repeat orders, retain the approved material, coating configuration and inspection criteria so that samples and production parts can be compared consistently.
Send your wavelength range, drawing, preferred substrate and expected quantity for a technical review. If the optical target is not yet finalized, share the sensor model or application details available to your engineering team.
Frequently Asked Questions
What is near-infrared AR coated glass?
It is glass with an anti-reflective coating designed for a specified near-infrared wavelength range. Suitability depends on the substrate, coating design and required optical performance.
Is ordinary AR glass suitable for 850 nm or 940 nm sensors?
Not automatically. A coating optimized for visible light may not achieve the same reflectance at 850 nm or 940 nm. The required wavelength should be confirmed before selecting the coating.
Can NIR AR glass be customized to a specific size?
Custom dimensions and shapes can be assessed according to the drawing, substrate thickness and available processing capabilities. Tolerances and edge details should be confirmed before production.
Should NIR AR coating be applied to both sides?
This depends on the optical path and whether reflections from both interfaces need to be controlled. The choice should also consider installation, handling and coating durability.
Can you provide a transmission curve for the finished window?
The required spectral data and test conditions should be agreed before ordering. Ask for a transmission or reflectance report covering the wavelength band relevant to your application.
What should I send with an NIR glass RFQ?
Provide the wavelength or spectral band, target reflectance or transmittance, glass material, thickness, dimensions, drawing, quantity and operating environment. Include any required test reports or inspection criteria.
Request a Quote for Near-Infrared AR Glass
Send your NIR optical window drawing and wavelength requirements for review. Include the target operating band, dimensions, substrate preference and quantity so that the proposed glass and coating can be evaluated for your equipment.
